| Webbing width | |
|---|---|
| Material | |
| Lever lock | not present |
| Tested according | DIN EN 12195-2 |
| Breaking Strength (BS) | 8.0 kN (800 daN) |
| Lashing Capacity (LC) | 4.0 kN (400 daN) |
| STF-value * | 50 daN |
71AX008

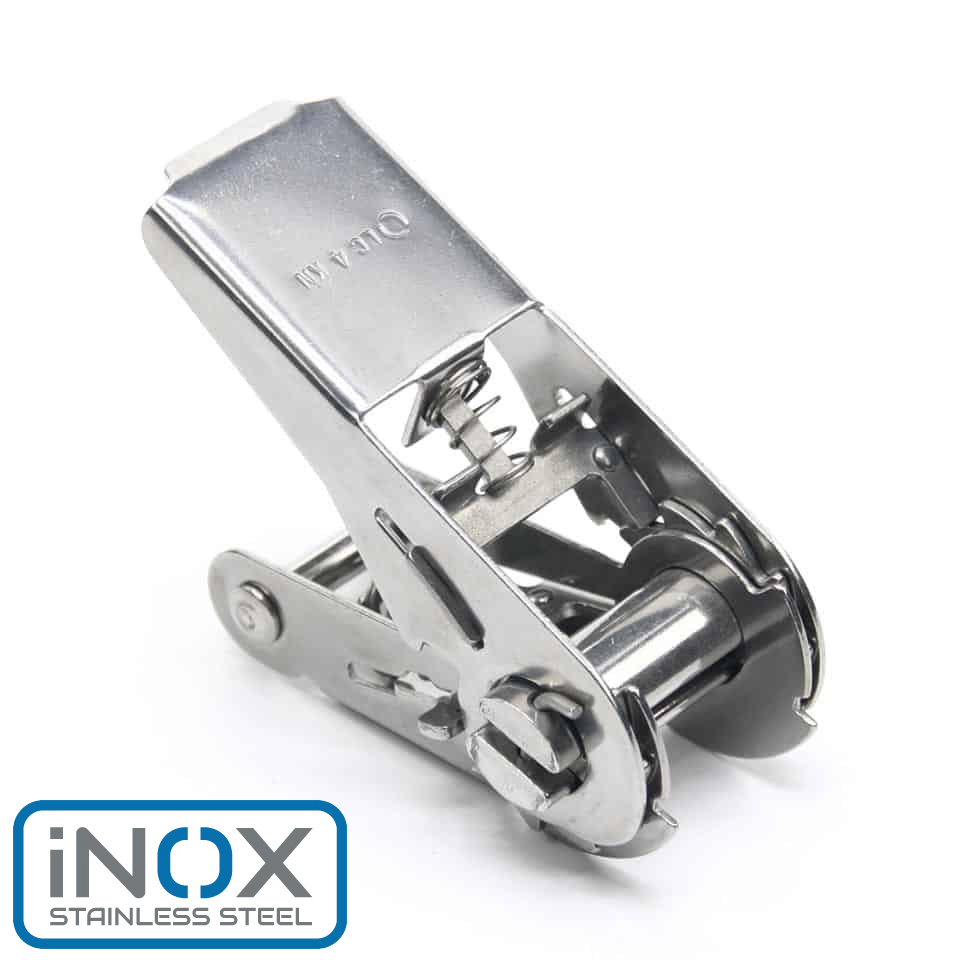

Pressure Ratchet 25mm – 8kN (Inox)
Pressure ratchet / Hobby ratchet for 25 mm Lashing straps.
With an LC of 400 daN in straight pull, this stainless steel Hobby ratchet is one of the smallest in our range. With a strap width of 25 mm, different loads can be secured.
All our 25mm Pressure Ratchets with a Breaking Strength of 8kN:
| SKU | Image | Name |
|---|---|---|
| 71AQ008 |  | Pressure Ratchet 25mm - 8kN |

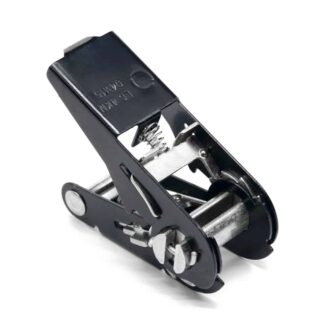

| 71ASQ008 |  | Pressure Ratchet 25mm - 8kN (bicolor) |
| 71AX008 | | Pressure Ratchet 25mm - 8kN (Inox) |
Weight per piece: 0,2 kg,
Box (100 pieces): 20,5 kg,
Pallet (45 boxes = 4500 pieces): 942.5 kg,
Height pallet: 110 cm (5 layers of 9 boxes)
* Important note on the STF - preload force: The STF-value we specify for pull and pressure ratchets is for guidance only.
Read more
Delivery quantity: 100 Pieces
Usually ready for shipment in 1 to 3 working days.
