70AP030

Double Cam buckle 25mm – 2.5kN

Double Cam buckle for 25 mm Lashing.

Webbing width

25 mm

Material

Zamak (ZP0410)

Finishing

Blanc

Tested according

DIN EN 12195-2

Breaking Strength (BS)

2.5 kN (250 daN)

Lashing Capacity (LC)

1.25 kN (125 daN)

Load securing with a dual cam buckle: here, the loose ends of the webbing are each pulled past the clamping lever, tensioned by hand to an open end and fixed in place by the clamping levers installed in the dual cam buckle. In contrast to compression and tension ratchets, low pretensioning forces are achieved with a load securing system: dual cam buckle with lashing strap.

All our 25mm Cam buckles with a Breaking Strength of 2.5kN:

SKUImageName

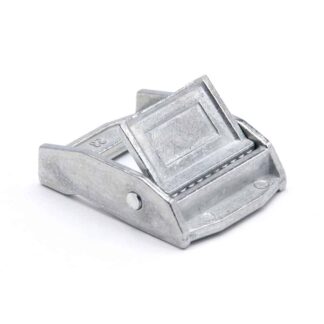

70AP025
Cam buckle Dualsafe 25mm - 2.5kN
Cam buckle Dualsafe 25mm - 2.5kN
70AG025
Cam buckle Dualsafe 25mm - 2.5kN (olive green)
Cam buckle Dualsafe 25mm - 2.5kN (olive green)
70AS025
Cam buckle Dualsafe 25mm - 2.5kN (black)
Cam buckle Dualsafe 25mm - 2.5kN (black)
70AP030
Double Cam buckle 25mm - 2.5kN
Double Cam buckle 25mm - 2.5kN

Weight per piece: 0,0643 kg,
Box (300 pieces): 19.79 kg,
Pallet (50 boxes = 15000 pieces): 1009.5 kg,
Height pallet: 78 cm (5 layers of 10 boxes)

Download pdf

Delivery quantity: 300 Pieces

Usually ready for shipment in 1 to 3 working days.

Price on request
